Analyze Crypto Markets with Coingecko Mcp and C1

The workflow JSON

Copy or download the full n8n JSON below. Paste it into a new n8n workflow, add your credentials, activate. Full import guide →

{
  "meta": {
    "templateCredsSetupCompleted": true
  },
  "nodes": [
    {
      "id": "49d802f8-848d-4788-a7ad-3f16237d4a00",
      "name": "When chat message received",
      "type": "@n8n/n8n-nodes-langchain.chatTrigger",
      "position": [
        -1008,
        1360
      ],
      "parameters": {
        "public": true,
        "options": {
          "responseMode": "streaming",
          "allowedOrigins": "*"
        }
      },
      "typeVersion": 1.4
    },
    {
      "id": "a91583fc-397c-47f6-b8cb-e66ce475df45",
      "name": "Simple Memory",
      "type": "@n8n/n8n-nodes-langchain.memoryBufferWindow",
      "position": [
        -656,
        1584
      ],
      "parameters": {},
      "typeVersion": 1.3
    },
    {
      "id": "9c931546-8c37-4f74-bd6c-1c223ad31e4c",
      "name": "CoinGecko Free MCP",
      "type": "@n8n/n8n-nodes-langchain.mcpClientTool",
      "position": [
        -528,
        1584
      ],
      "parameters": {
        "options": {},
        "endpointUrl": "https://mcp.api.coingecko.com/mcp"
      },
      "typeVersion": 1.2
    },
    {
      "id": "180d6130-17d4-48c3-bc88-5606ba862161",
      "name": "Sticky Note5",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -1392,
        1536
      ],
      "parameters": {
        "width": 480,
        "height": 1040,

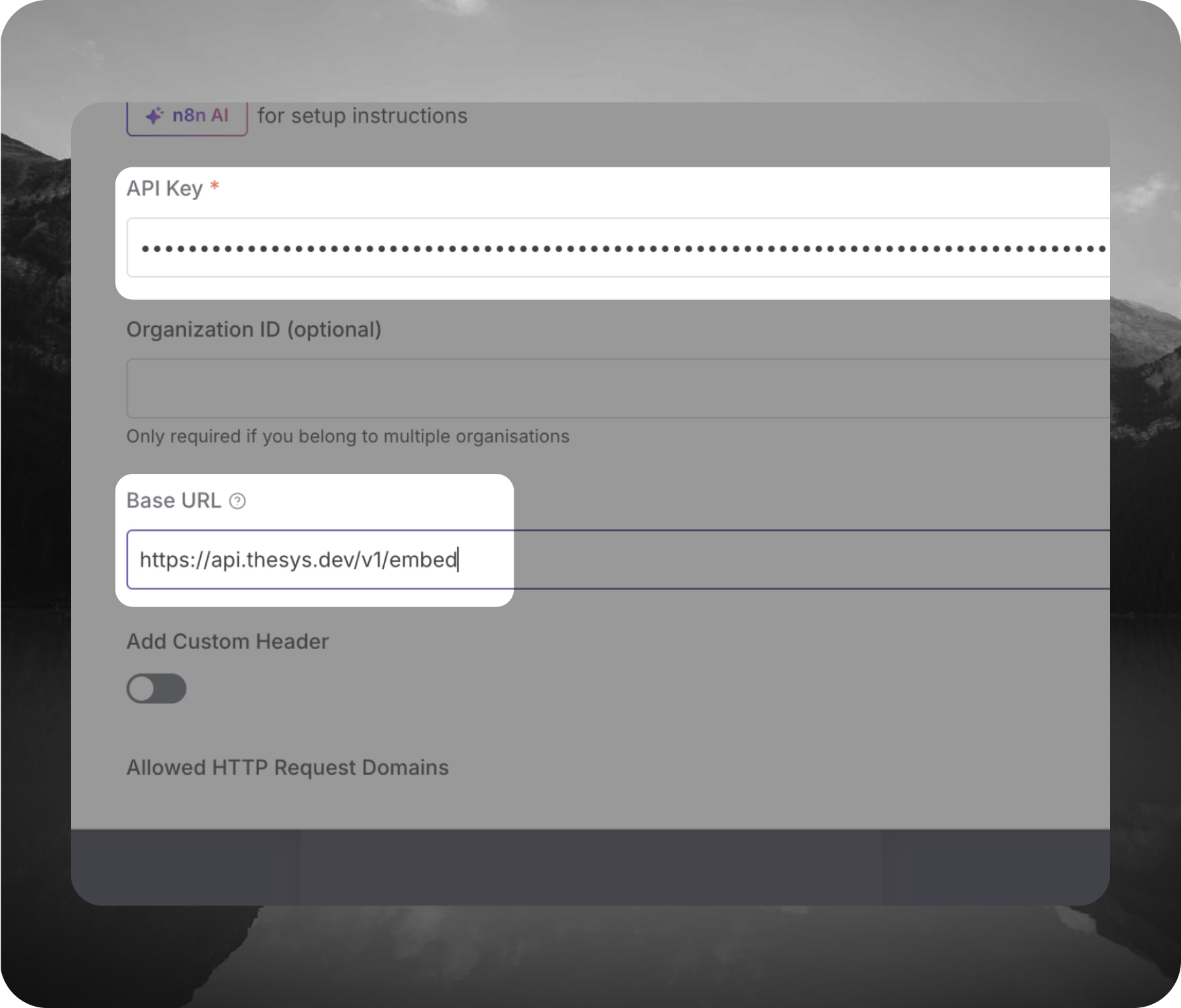

        "content": "### Step 1: Enable Chat\n\n1. In n8n, open the Chat node in your workflow.\n\n2. Make Chat Publicly available.\n\n3. Copy the Chat URL. You will need it in the next step.\n\n\n### Step 2: Setup Thesys\n\n![](https://www.thesys.dev/n8n/n8n-step-2.png)\n\n1. [Go to Thesys Console and log in](https://console.thesys.dev/keys)\n\n2. Generate a new API key and copy it somewhere safe.\n\n3. In n8n, open the Model node in your workflow.\n\n4. In the Credentials section, click Create New to add a new credential.\n\n5. Paste your Thesys API key into the API Key field.\n\n6. Update the Base URL to - https://api.thesys.dev/v1/embed and save the credential.\n\n7. Back in the Model section of the node, select the model you want to use\n(for example: c1/openai/gpt-5/v20251230) and save the node."
      },
      "typeVersion": 1
    },
    {
      "id": "d17a0b15-aaa0-4c2c-a723-f48818f1de8f",
      "name": "Sticky Note1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -400,
        544
      ],
      "parameters": {
        "width": 1136,
        "height": 656,

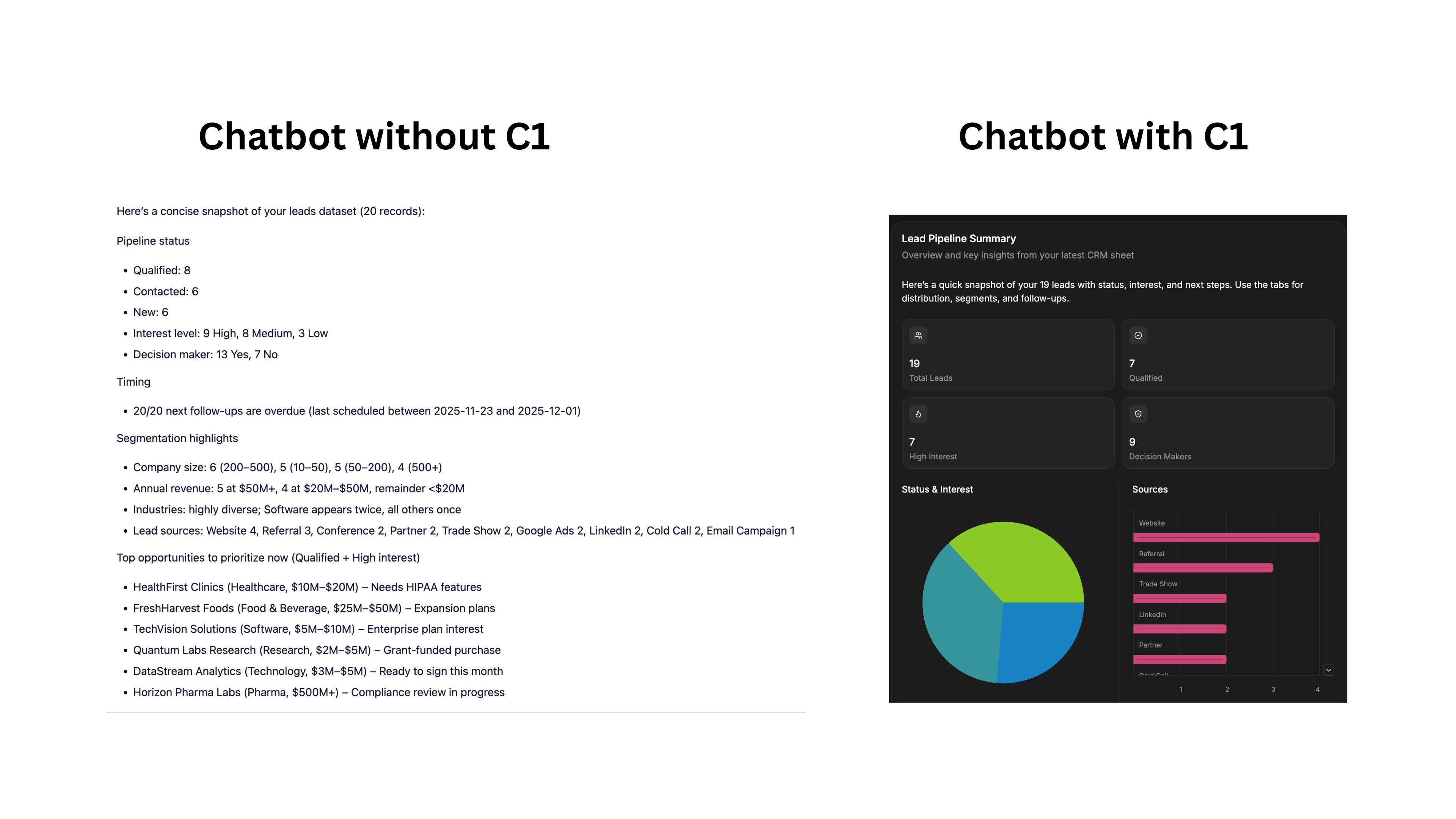

        "content": "![](https://www.thesys.dev/n8n/n8n-compare.png)"
      },
      "typeVersion": 1
    },
    {
      "id": "d9c2ca8b-b489-40d0-a38e-582ac21e69ec",
      "name": "Sticky Note2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -1360,
        -384
      ],
      "parameters": {
        "width": 928,
        "height": 1584,
        "content": "## Analyze crypto markets with interactive graphs using CoinGecko and C1 by Thesys\n\nThis n8n template   can answer questions about **real-time prices, market moves, trending coins, and token details** with **interactive UI in real time** (cards, charts, buttons) instead of plain text using C1 by Thesys. Data is fetched through the **CoinGecko Free MCP tool**.\n\n### [Check out a working demo of this template here](https://www.thesys.dev/n8n?url=https://www.thesys.dev/n8n?url=https%3A%2F%2Fasd2224.app.n8n.cloud%2Fwebhook%2F51638b0c-7765-4fa8-9b95-a0422128e203%2Fchat).\n\n### What this workflow does\n1. A user sends a message in the **n8n Chat** UI (public chat trigger).\n2. The **AI Agent** interprets the request.\n3. The agent calls **CoinGecko Free MCP** to fetch market data (prices, coins, trending, etc.).\n4. The model responds through **C1 by Thesys** with a **streaming, UI** answer.\n\n### Example prompts you can try right away\nCopy/paste any of these into the chat:\n\n- \u201cWhat\u2019s the current price of Bitcoin and Ethereum?\u201d\n- \u201cGive me today\u2019s market summary: total market cap, BTC dominance, top gainers/losers.\u201d\n- \u201cCompare ETH vs SOL over 30 days with a chart.\u201d\n\n> Note: This template is for information and visualization, not financial advice.\n\n\n### How it works\n\n1. User sends a prompt\n2. C1 model based on prompt will use CoinGecko MCP to fetch live data\n3. C1 Model generates a UI Schema Response\n4. Schema is rendered as UI using Thesys GenUI SDK on the frontend\n\n\n### Setup \n\nMake sure you have the following:\n\n#### 1\ufe0f\u20e3  Thesys API Key\nYou\u2019ll need an API key to authenticate and use Thesys services.\n\n\ud83d\udc49 Get your key [here](https://console.thesys.dev/keys)  \n\n### What is C1 by Thesys?\nC1 by [Thesys](https://www.thesys.dev/)  is an API middleware that augments LLMs to respond with **interactive UI (charts, buttons, forms)** in real time instead of text.\n\n### Video Tutorial\n\n@[youtube](0rtdVfjKJ-M)\n\n### Facing setup issues?\n#### If you get stuck or have questions:\n\n- #### \ud83d\udcac Join the [Thesys Community](https://discord.com/invite/Pbv5PsqUSv)  \n- #### \ud83d\udce7 Email support:  support@thesys.dev\n"
      },
      "typeVersion": 1
    },
    {
      "id": "e57826e7-4cd0-481f-a13c-0067c0c0f55f",
      "name": "Sticky Note8",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -320,
        1264
      ],
      "parameters": {
        "color": 5,
        "width": 448,
        "height": 400,
        "content": "\n### Step 2: Activate the Workflow\n\n1. At the top of the n8n editor, click the Active / Inactive toggle.\n\n2. Confirm the workflow status is set to Active.\n\n\n### Step 3: Try It Out\n\n1. Open [Thesys N8N page](https://www.thesys.dev/n8n)\n\n2. Paste your Chat URL into the input box.\n\n3. Send a test message to confirm everything is working."
      },
      "typeVersion": 1
    },
    {
      "id": "8cb3d649-f60d-4e3d-8852-fc05ded19273",
      "name": "UI Agent",
      "type": "@n8n/n8n-nodes-langchain.agent",
      "position": [
        -736,
        1360
      ],
      "parameters": {
        "options": {
          "systemMessage": "You are a crypto copilot",
          "enableStreaming": true
        }
      },
      "typeVersion": 3
    },
    {
      "id": "2bd8b38c-dff3-408c-ab02-92d8c7cea7e9",
      "name": "C1 Model",
      "type": "@n8n/n8n-nodes-langchain.lmChatOpenAi",
      "notes": "ZZZ",
      "position": [
        -832,
        1584
      ],
      "parameters": {
        "model": {
          "__rl": true,
          "mode": "list",
          "value": "c1/openai/gpt-5/v-20250930",
          "cachedResultName": "c1/openai/gpt-5/v-20250930"
        },
        "options": {},
        "responsesApiEnabled": false
      },
      "credentials": {
        "openAiApi": {
          "name": "<your credential>"
        }
      },
      "notesInFlow": false,
      "typeVersion": 1.3
    },
    {
      "id": "3b21b5df-1510-4d7a-bcad-bb0c37270334",
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -880,
        1264
      ],
      "parameters": {
        "color": 7,
        "width": 528,
        "height": 480,
        "content": "## UI Agent\nThis agent can reason, use tools and returns results as interactive UI"
      },
      "typeVersion": 1
    }
  ],
  "connections": {
    "C1 Model": {
      "ai_languageModel": [
        [
          {
            "node": "UI Agent",
            "type": "ai_languageModel",
            "index": 0
          }
        ]
      ]
    },
    "UI Agent": {
      "main": [
        []
      ]
    },
    "Simple Memory": {
      "ai_memory": [
        [
          {
            "node": "UI Agent",
            "type": "ai_memory",
            "index": 0
          }
        ]
      ]
    },
    "CoinGecko Free MCP": {
      "ai_tool": [
        [
          {
            "node": "UI Agent",
            "type": "ai_tool",
            "index": 0
          }
        ]
      ]
    },
    "When chat message received": {
      "main": [
        [
          {
            "node": "UI Agent",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}

Credentials you'll need

Each integration node will prompt for credentials when you import. We strip credential IDs before publishing — you'll add your own.

• openAiApi

About this workflow

This n8n template can answer questions about real-time prices, market moves, trending coins, and token details with interactive UI in real time (cards, charts, buttons) instead of plain text using C1 by Thesys. Data is fetched through the CoinGecko Free MCP tool. A user sends a…

Source: https://n8n.io/workflows/12548/ — original creator credit. Request a take-down →
